Bundles

Bundles are groups of ad copies that you can schedule, as a whole, in Broadsign Administrator. As a result, you are able to schedule several different versions of the same ad at once.

Add and edit bundles in a campaign’s properties.

Playback order for multiple bundles

Here are a few ways to use bundles in Broadsign Administrator:

    • Handling multiple ad copies: This is useful when you are planning a campaign across displays that have conflicting media requirements, e.g. languages, aspect ratios, regionalization, etc. This is done at the Broadsign Player level where the software matches criteria assigned to the ad copies in the bundle against criteria assigned to its display unit or the frame in which it is currently playing. For more information, see Playlist Generation – Ad Copy Criteria Matching.
    • Playback order for multiple bundles: When using multiple bundles in a campaign, you can control the playback of the bundle rotation from the campaign properties.
To add a bundle:
  1. Select a campaign, and open its properties.
  2. Go to Media > Bundles.

  1. Select the ad copies that will make up the bundle.
  2. Click OK.

To open the Bundle Properties dialogue box, select a bundle, and click Edit.

The General Section

The General Tab

The Duration Tab


No maximum duration
It is possible to specify a maximum run time for a bundle. This is for content such as images, web content, and Flash animations, which have no specific end time.

The player can detect when full motion video clips, such as MPEGs have ended and move to the next bundle in the playlist. Specifying a Maximum Bundle Duration for this type of content is, therefore, not necessary.

Override slot duration
If necessary, you can set certain bundles to ignore the duration limit of the slots they occupy. This means if the bundle normally plays for forty seconds, either because it is a forty second video clip or because its maximum bundle duration is set to forty, and is scheduled in a Campaign that is set for thirty seconds, the bundle will play for the full forty seconds and not be cut off at thirty seconds, which would normally be the case.

Allowing bundles to override the slot duration should be used with care. If a bundle is far longer than the intended slot duration, it can cause the total amount of repetitions for the ads in that loop to be less than the expected amount, and thus anger clients expecting more ad exposure. If the content type has no defined ending, such as an image, and the bundle duration is not set, bundle override will cause that particular ad to play endlessly.

The Geometry Tab


Selecting the Full Screen option allows you to override the other frames in the display unit, and show this bundle’s content in full screen mode for the full length of its duration. Once playback is complete, the display unit restores the previous frame layout. Also, contents that were hidden are restarted from the beginning.

The Ad Copies Tab


The Ad Copies tab shows the ad copy resources contained in a bundle. If this list is empty, nothing will be displayed by the Broadsign Player when the bundle is scheduled. You can also add or remove ad copies.

The Categories Section

The Separation Tab


If you want to describe the type of product or function that a bundle promotes, you can assign a separation category to it. The player uses this information to perform the Category Separation. For more information, see Playlist Generation – Loop Policy Transforms.

The Segment Tab


You can use segment categories to distribute weight values in the bundle. For more information, see Playlist Generation – Loop Policy Transforms.

The Trigger Tab

The Interactivity Tab

The Conditions Section

The Conditions Tab


In the conditions tab, you can specify which conditions must be active at the player level in order for this bundle to play. Conditions are set by third-party applications via the Player API. They allow for certain types of special dynamic content, such as reacting to audience composition or weather condition. For more information, see The Player API – Conditions.

“Clone” allows the user to add multiple copies of the same bundle, removing the need to upload the same ad copy multiple times.

To clone a bundle, select one and then click Clone. The Clone Bundle Wizard opens.

You can clone the bundle once, or multiple times. If you choose to create multiple clones, you can specify the number.

Configure % Share

“%Share” allows the user to enter in a percentage share for each bundle. The total should equal 100%; however, if the total is above or below 100%, a calculation will be done to find the lowest common denominator. Once specified, the bundles pane populate with the appropriate amount of bundles.

For example, in the case of a 20% / 25% / 40% / 15% share, the number of bundles that will be generated would be 4 / 5 / 8 / 3. These bundles can then be “Separated” (default option) or “Segmented” and in both cases it is possible to reorder them if needed.

Ordered Rotation

By default, the “Rotation Mode” is set to “Ordered”. This mode allows controlling the Bundle rotation by specifying a playback order for the bundles and in addition offers a “Clone” and a “%Share” option.

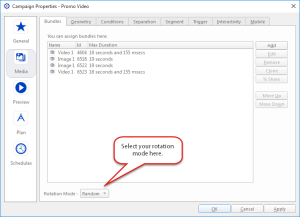

Random Rotation

If the “Rotation Mode” is set to “Random”, the bundles will play back in a completely randomized order while still ensuring an even distribution of plays.

    • Each bundle will play once before it gets selected again.
    • When all bundles have played once, they get randomly sorted again.
Notes & Limitations
    • With this option turned on, the Loop Snapshot Report will no longer reflect the actual playback order.
    • Each Player will randomize the bundles in a different way.
    • In the Display Unit preview, once past the end of a set of randomized bundles, they get randomized again hence when pressing “back” a bundle different from the one previously seen will be displayed.
    • If a Player reboots through a set of random bundles, it is possible that the previously selected ones get played back again.
